كويز تفاعلي: 18 Questions: Geometry Points, Lines, and Planes Exercises
This comprehensive set of geometry exercises focuses on the foundational concepts of points, lines, and planes. Students will practice identifying planes in three-dimensional figures, determining collinearity and coplanarity, and finding intersections between geometric elements. The quiz also includes visual identification tasks where geometric relationships are represented through diagrams and coordinate planes, reinforcing the ability to interpret and label complex figures correctly.
🏆
Join the challenge and claim your rank
Take a timed certificate practice test for the same grade, subject, and term.
يرجى الانتباه إلى أن المعلم قام بإعداد الأسئلة فقط، ولم يقم بإعداد الإجابات أو الشروحات المرفقة. وقد تم توليد الإجابات باستخدام تقنيات الذكاء الاصطناعي، لذلك قد تتضمن بعض الأخطاء أو عدم الدقة.
للحصول على الإجابات الصحيحة والمضمونة، يُرجى الرجوع إلى المعلم أو المصدر الدراسي المعتمد.
Question 1
DB question no.: 1
Points: 1
Refer to the figure. How many planes appear in this figure?
Explanation
The figure consists of a rectangular pyramid on a plane P. The pyramid has 4 triangular side faces and 1 rectangular base which lies on plane P, making a total of 5 distinct planes.
Question 2
DB question no.: 2
Points: 1
Refer to the figure. Name four points that are collinear.
Explanation
Collinear points are points that lie on the same line. In the diagram, points J, I, G, and A all lie on the vertical line labeled l.
Question 3
DB question no.: 3
Points: 1
Refer to the figure. Name the intersection of plane GAC and plane P.
Explanation
The intersection of two planes is a line. Plane GAC contains points A and C, and plane P also contains points A and C (as they are part of the pyramid's base on P). Therefore, the line $\overleftrightarrow{AC}$ is the intersection.
Question 4
DB question no.: 4
Points: 1
Refer to the figure. At what point do $\overleftrightarrow{JI}$ and $\overleftrightarrow{DC}$ intersect? Explain.
Explanation
Line $\overleftrightarrow{JI}$ passes through plane P at point I. Line $\overleftrightarrow{DC}$ lies entirely within plane P. Unless point I lies on line $\overleftrightarrow{DC}$, they do not intersect. Based on the diagram, I is not on $\overleftrightarrow{DC}$.
Question 5
DB question no.: 5
Points: 1
Refer to the figure. How many planes are shown in the figure?
Explanation
The figure shows a triangular prism on a plane W. The planes are the top base (DEF), the bottom base (ABC which is part of plane W), and the three rectangular side faces (ABED, BCFE, and ACFD). Totaling 5 distinct planes.
Question 6
DB question no.: 6
Points: 1
Refer to the figure. How many of the planes contain points F and E?
Explanation
Points F and E define the edge $\overline{FE}$. This edge is shared by two planes: the top triangular base (DEF) and the rectangular side face (BCFE).
Question 7
DB question no.: 7
Points: 1
Refer to the figure. Name four points that are coplanar.
Explanation
Coplanar points lie on the same plane. Points A, B, E, and F all lie on one of the rectangular side faces of the prism.
Question 8
DB question no.: 8
Points: 1
Refer to the figure. Are points A, B, and C coplanar? Explain.
Explanation
Any three points define a plane. In this specific figure, points A, B, and C are explicitly shown lying within the plane labeled W.
Question 9
DB question no.: 9
Points: 1
The roof and exterior walls of a house represent intersecting planes. Using the image, name all the lines that are formed by the intersecting planes.
Explanation
Each line segment where two faces of the house meet represents the intersection of two planes. This list includes all edges of the walls and the roof segments visible in the diagram.
Question 10
DB question no.: 10
Points: 1

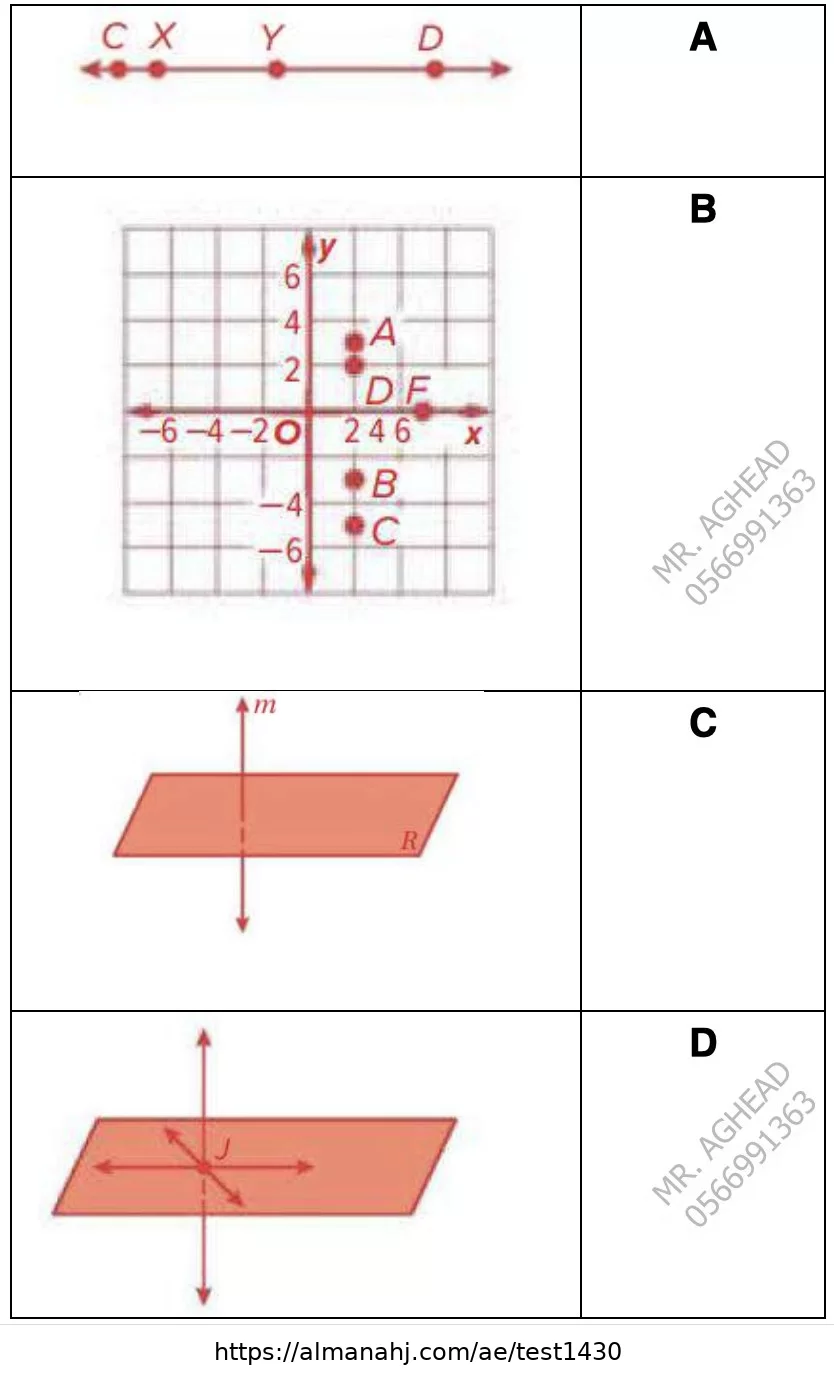

Identify the figure that represents the following relationship: Points X and Y lie on $\overleftrightarrow{CD}$.
Explanation
In figure A, points X and Y are clearly labeled as points belonging to the line defined by points C and D.
Question 11
DB question no.: 11
Points: 1
Identify the figure that represents the following relationship: Two planes do not intersect.
Explanation
Figure B shows two parallel planes, which by definition never intersect regardless of how far they extend.
Question 12
DB question no.: 12
Points: 1
Identify the figure that represents the following relationship: Line m intersects plane R at a single point.
Explanation
Figure C shows line m passing through plane R, intersecting it at exactly one point indicated by the dashed lines where it is 'hidden' by the plane.
Question 13
DB question no.: 13
Points: 1
Identify the figure that represents the following relationship: Three lines intersect at point J but do not all lie in the same plane.
Explanation
Figure D illustrates three lines in three-dimensional space that all meet at a common point J, but are oriented such that they cannot all be contained within a single two-dimensional plane.
Question 14
DB question no.: 14
Points: 1
Identify the figure that represents the following relationship: Points A(2, 3), B(2, -3), C, and D are collinear, but A, B, C, D, and F are not.
Explanation
Figure B shows a coordinate plane where points A, B, C, and D all fall on the vertical line x=2 (collinear), while point F is located off that line, making the group non-collinear.
Question 15
DB question no.: 15
Points: 1
Name the intersection of lines m and t.
Explanation
In the diagram, lines m and t are both located in the upper plane and intersect at the point labeled B.
Question 16
DB question no.: 16
Points: 1
Name a point that is not coplanar with points A, B, and C.
Explanation
Points A, B, and C lie in the upper plane. Point P lies in the lower plane (Q). Therefore, P is not coplanar with A, B, and C.
Question 17
DB question no.: 17
Points: 1
Are points F, M, G, and P coplanar? Explain.
Explanation
Coplanar points must lie in the same single plane. Since F is in R but G and P are in a different plane Q, all four cannot be in one plane simultaneously.
Question 18
DB question no.: 18
Points: 1
Does line n intersect line q?
Explanation
Line n is the intersection of the two planes, and line q is also in plane Q. Based on their orientation in the diagram, if these lines are extended, they will meet at a point (indicated near point L).
