كويز تفاعلي: Identifying Angle Relationships with Parallel Lines

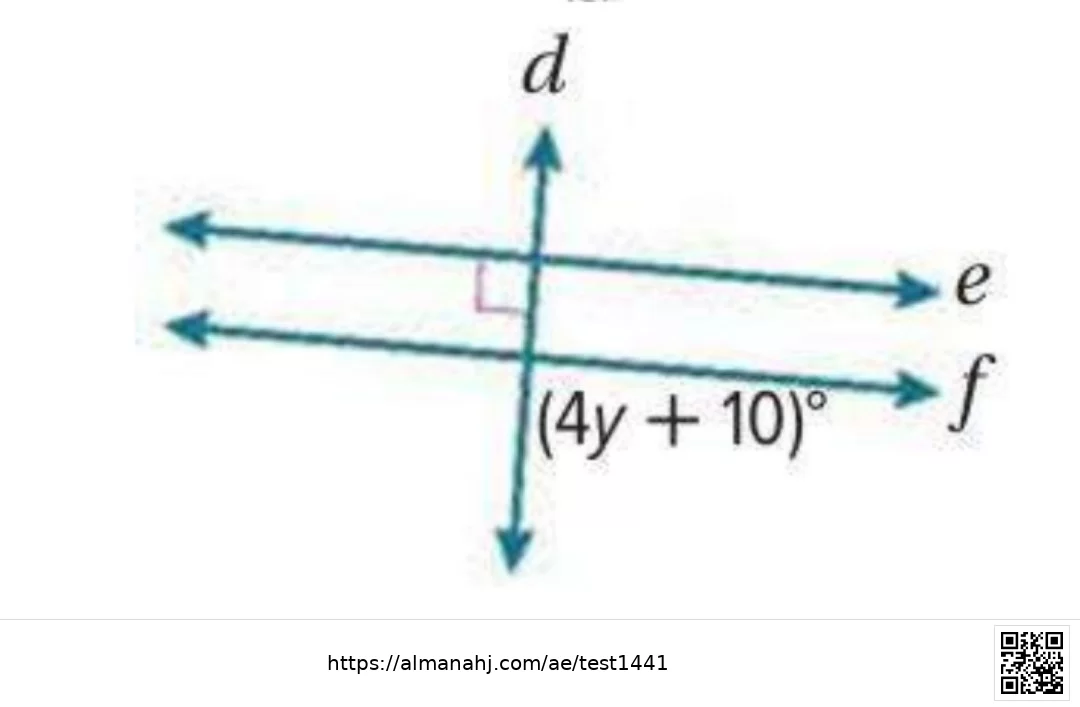

In the given diagram, the lines e and f are parallel, and line d is a transversal. The square symbol indicates that the angle between line d and line f at the top-\left intersection is $90^\circ$. The angle $(4y+10)^\circ$ is an alternate interior angle to this $90^\circ$ angle. Since lines e and f are parallel, alternate interior angles are equal. Therefore, 4y+10 = 90. Subtracting 10 from both sides gives 4y = 80. Dividing by 4 gives y = 20.

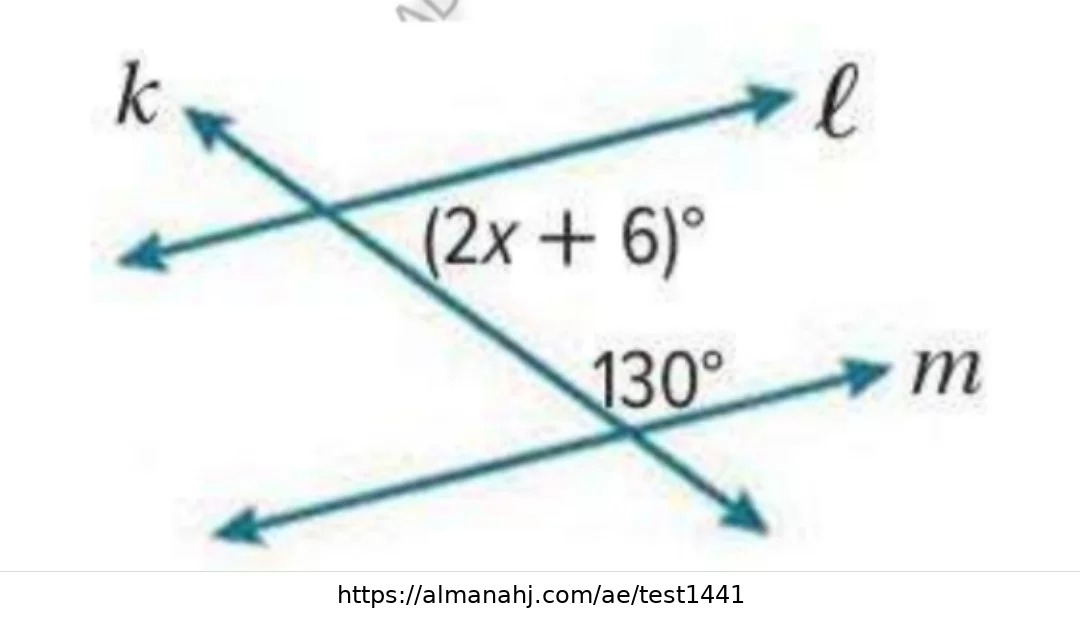

In the given diagram, lines l and m are parallel, and line k is a transversal. The angle $(2x+6)^\circ$ is an interior angle. The $130^\circ$ angle is an exterior angle. The interior angle adjacent to the $130^\circ$ angle forms a linear pair, so its measure is $180^\circ - 130^\circ = 50^\circ$. This $50^\circ$ angle and $(2x+6)^\circ$ are alternate interior angles. Since lines l and m are parallel, alternate interior angles are equal. Therefore, 2x+6 = 50. Subtracting 6 from both sides gives 2x = 44. Dividing by 2 gives x = 22.

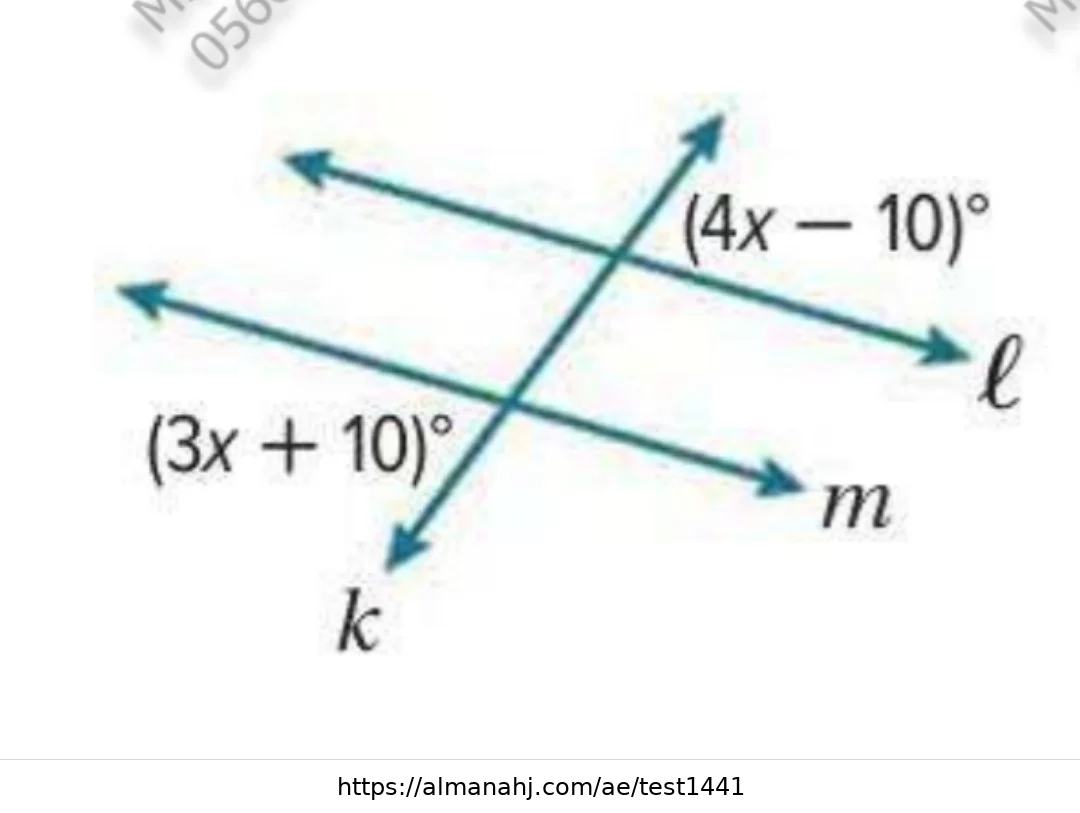

In the given diagram, lines l and m are parallel, and line k is a transversal. The angles $(3x+10)^\circ$ and $(4x-10)^\circ$ are alternate interior angles. Since lines l and m are parallel, alternate interior angles are equal. Therefore, 3x+10 = 4x-10. Subtracting 3x from both sides gives 10 = x-10. Adding 10 to both sides gives x = 20.

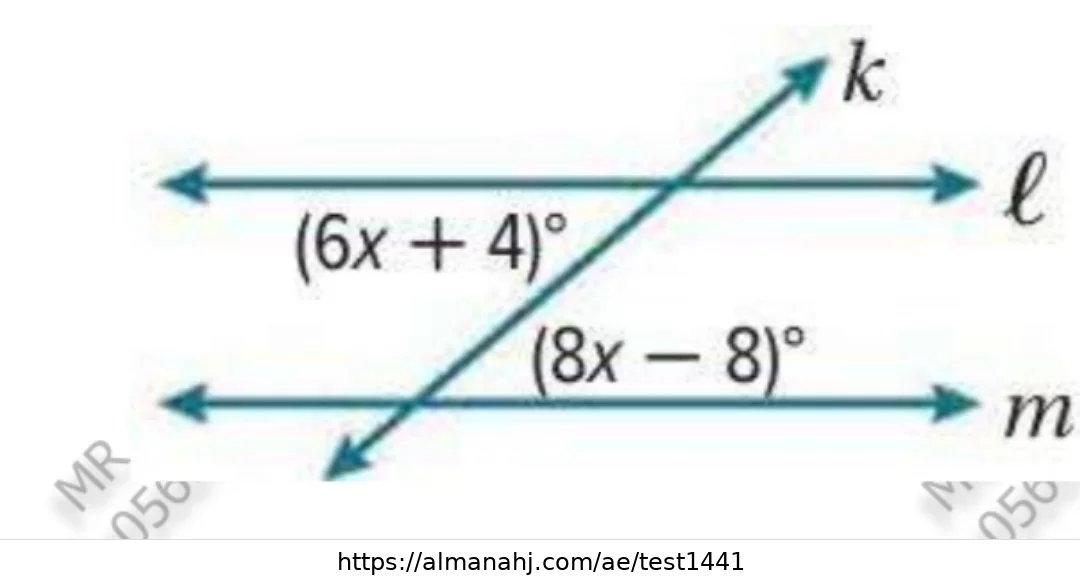

In the given diagram, lines l and m are parallel, and line k is a transversal. The angle $(6x+4)^\circ$ is an exterior angle. The angle $(8x-8)^\circ$ is an interior angle. The angle forming a linear pair with $(6x+4)^\circ$ (top-\left exterior) is the top-\left interior angle, which is $180^\circ - (6x+4)^\circ$. This angle and $(8x-8)^\circ$ (bottom-\right interior) are alternate interior angles. Since lines l and m are parallel, alternate interior angles are equal. Therefore, 180 - (6x+4) = 8x-8. This simplifies to 176 - 6x = 8x - 8. Adding 6x and 8 to both sides gives 176+8 = 8x+6x, so 184 = 14x. Dividing by 14 gives $x = \frac{184}{14} = \frac{92}{7}$. This does not match the options. Let's re-evaluate using a different relationship.
The angle $(6x+4)^\circ$ is top-\left exterior. The angle $(8x-8)^\circ$ is bottom-\right interior. The angle vertically opposite to $(6x+4)^\circ$ is the top-\right interior angle. This angle and $(8x-8)^\circ$ are consecutive interior angles, so their sum is $180^\circ$. Thus, (6x+4) + (8x-8) = 180. This simplifies to 14x - 4 = 180. Adding 4 to both sides gives 14x = 184. So $x = \frac{184}{14} = \frac{92}{7}$. Still not matching the options.
Let's reconsider the angle relationships: the angle $(6x+4)^\circ$ (top-\left exterior) and the angle $(8x-8)^\circ$ (bottom-\right interior). The angle $(6x+4)^\circ$ and the angle that is corresponding to $(8x-8)^\circ$ (top-\right exterior) are not directly related. However, the angle $(6x+4)^\circ$ (top-\left exterior) and the angle vertically opposite to $(8x-8)^\circ$ (bottom-\left exterior) would be alternate exterior angles, which are equal. So 6x+4 = 8x-8. Subtracting 6x from both sides gives 4 = 2x-8. Adding 8 to both sides gives 12 = 2x. Dividing by 2 gives x=6. This matches option A.

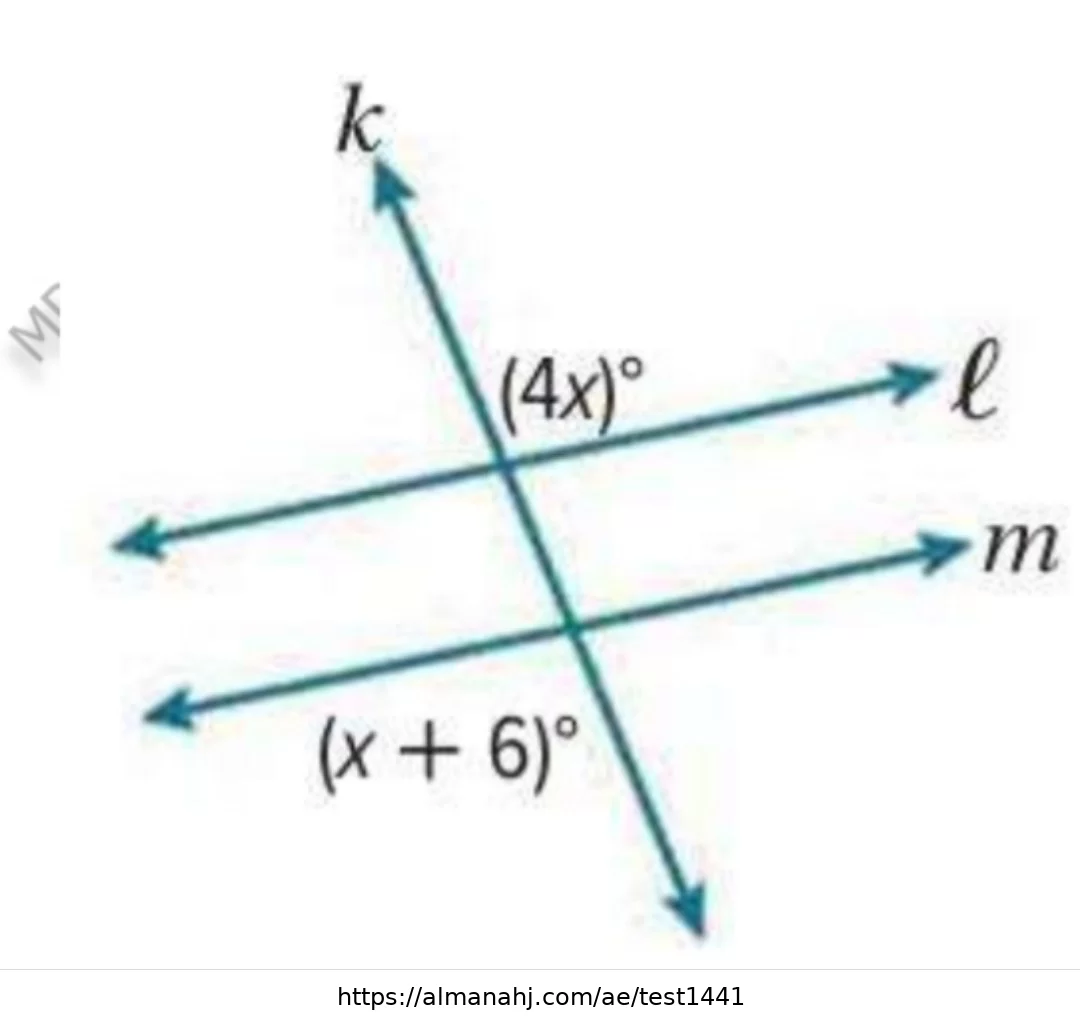

In the given diagram, lines l and m are parallel, and line k is a transversal. The angle $(4x)^\circ$ is the top-\right interior angle. The angle $(x+6)^\circ$ is the bottom-\left interior angle. These are alternate interior angles. Since lines l and m are parallel, alternate interior angles are equal. Therefore, 4x = x+6. Subtracting x from both sides gives 3x = 6. Dividing by 3 gives x = 2.

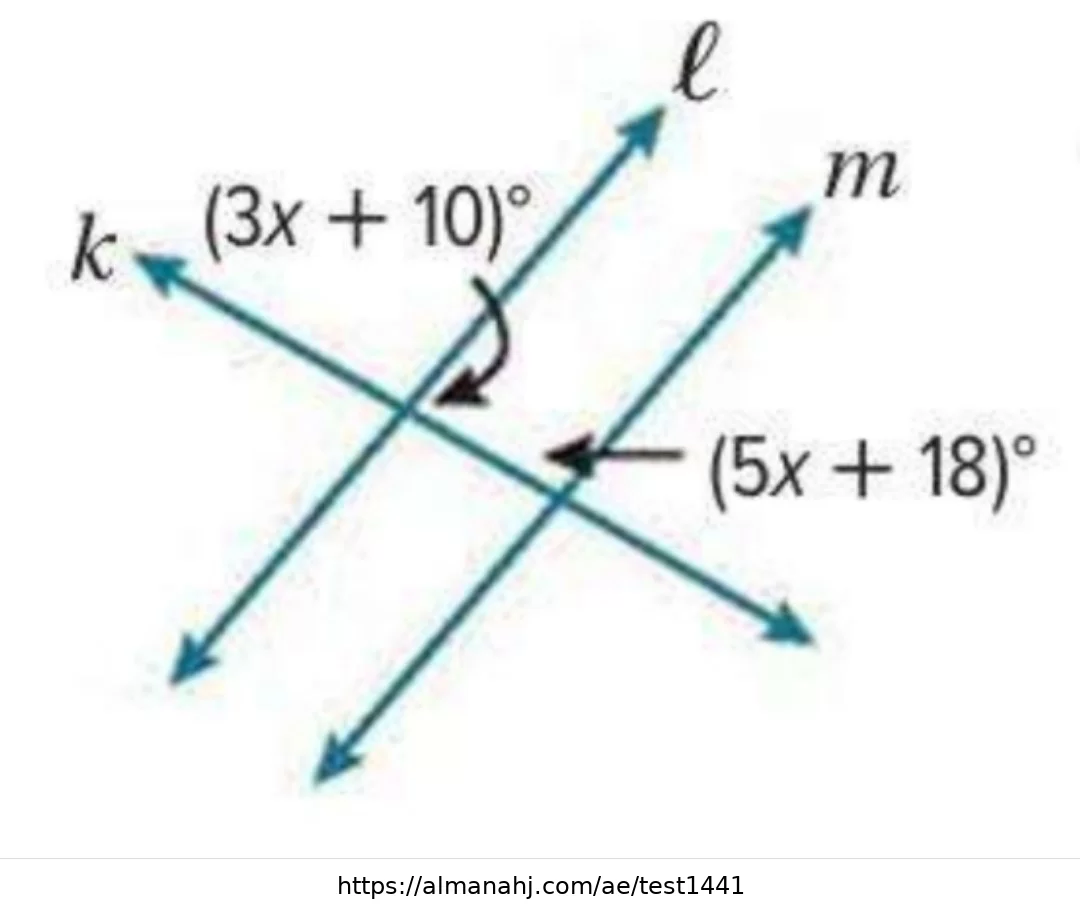

In the given diagram, lines l and m are parallel, and line k is a transversal. The angle $(3x+10)^\circ$ is the top-\left interior angle. The angle $(5x+18)^\circ$ is the bottom-\right exterior angle. The angle vertically opposite to the bottom-\right exterior angle is the bottom-\left interior angle. Therefore, the bottom-\left interior angle is also $(5x+18)^\circ$. The angles $(3x+10)^\circ$ (top-\left interior) and $(5x+18)^\circ$ (bottom-\left interior) are consecutive interior angles. Since lines l and m are parallel, consecutive interior angles are supplementary, meaning their sum is $180^\circ$. So, (3x+10) + (5x+18) = 180. This simplifies to 8x + 28 = 180. Subtracting 28 from both sides gives 8x = 152. Dividing by 8 gives x = 19.
