كويز تفاعلي: Physics Test: Electric Circuits, Kirchhoff's Laws and Safety Devices
This comprehensive assessment covers fundamental concepts in electrical physics, specifically focusing on voltage divider circuits, parallel resistor configurations, and the application of Kirchhoff's junction and loop rules. It also explores the scientific principles and practical functions of electrical safety components like fuses, circuit breakers, and ground fault interrupters (GFI). The test includes both conceptual questions and analytical problems requiring calculations of equivalent resistance, current intensity, and potential difference across circuit components.
يرجى الانتباه إلى أن المعلم قام بإعداد الأسئلة فقط، ولم يقم بإعداد الإجابات أو الشروحات المرفقة. وقد تم توليد الإجابات باستخدام تقنيات الذكاء الاصطناعي، لذلك قد تتضمن بعض الأخطاء أو عدم الدقة.
للحصول على الإجابات الصحيحة والمضمونة، يُرجى الرجوع إلى المعلم أو المصدر الدراسي المعتمد.
السؤال 1
النقاط: 1
Looking at the diagram, what is the primary role of a "voltage divider" in electronic devices such as a light meter?
تفسير الإجابة
A voltage divider's purpose is to provide a specific output voltage that is a fraction of its input voltage (the battery).
السؤال 2
النقاط: 1
According to the diagram, how does the resistance of a "photoresistor" (sensor) change when exposed to light?
تفسير الإجابة
Photoresistors (LDRs) typically decrease in resistance as the intensity of incident light increases.
السؤال 3
النقاط: 1
The voltage produced by the voltage divider circuit in a light meter (Figure) depends on:
تفسير الإجابة
The output voltage is determined by the resistance of the photoresistor, which varies based on light intensity.
السؤال 4
النقاط: 1
(Based on the diagram) A $9.0\V$ battery is connected to two resistors, $R_1 = 390\ \Omega$ and $R_2 = 470\ \Omega$, which act as a voltage divider. What is the magnitude of the voltage across the resistor $R_2 = 470\ \Omega$?
تفسير الإجابة
Using the voltage divider formula: $V_2 = V_{source} \times \frac{R_2}{R_1 + R_2} = 9 \times \frac{470}{390 + 470} = 9 \times \frac{470}{860} \approx 4.9\V$.
السؤال 5
النقاط: 1
In a voltage divider circuit consisting of two resistors in series, if the value of the resistance is greater than half the equivalent resistance of the circuit, then the potential difference across it is:
تفسير الإجابة
Potential difference is proportional to resistance in a series circuit; if R > 0.5 Req, then V > 0.5 Vtotal.
السؤال 6
النقاط: 1
Which of the following equations is correctly used to calculate the potential difference across the second resistor (V2) in a voltage divider circuit consisting of R1 and R2?
تفسير الإجابة
This is the standard voltage divider formula for the second resistor in a two-resistor series circuit.
السؤال 7
النقاط: 1
Determine the value of a resistor to be used as part of a voltage divider connected to a $1.2\k\Omega$ resistor. The potential difference across the $1.2\k\Omega$ resistor will be $2.2\V$ when the source is $12\V$.
تفسير الإجابة
Using V = I × R, $I = \frac{2.2}{1200} \approx 0.001833\A$. The total resistance needed is $R_{total} = \frac{12}{I} \approx 6545\ \Omega$. Thus, the unknown resistor is $6545 - 1200 = 5345\ \Omega$ or $5.3\k\Omega$.
السؤال 8
النقاط: 1
A "voltage divider" circuit is used to produce a voltage source:
تفسير الإجابة
The voltage divider produces an output that is always a fraction of the input voltage.
السؤال 9
النقاط: 1
Three resistors with values of $30\ \Omega$, $60\ \Omega$, and $20\ \Omega$ are connected in parallel with a $90\V$ battery. What is the equivalent resistance of the circuit?
In the previous circuit ($90\V$ battery and equivalent resistance $10\ \Omega$), what is the total current coming out of the battery?
تفسير الإجابة
Using Ohm's Law: $I = \frac{V}{R_{eq}} = \frac{90}{10} = 9\A$.
السؤال 11
النقاط: 1
If two $15\ \Omega$ resistors and two $15\ \Omega$ resistors are connected in parallel to a $30\V$ battery, what is the current flowing through each branch?
تفسير الإجابة
In a parallel circuit, the voltage across each branch is the same as the battery voltage. $I = \frac{V}{R} = \frac{30}{15} = 2\A$.
السؤال 12
النقاط: 1
What happens to the equivalent resistance in a parallel circuit when a new resistance is added to the paths?
تفسير الإجابة
Adding more paths for current in parallel always reduces the overall resistance of the circuit.
السؤال 13
النقاط: 1
In a parallel circuit, which physical property remains constant across all branches?
تفسير الإجابة
Voltage (potential difference) is the same across all components connected in parallel.
السؤال 14
النقاط: 1
I connected a $120.0\ \Omega$ resistor, a $60.0\ \Omega$ resistor, and a $40.0\ \Omega$ resistor in parallel with a $12.0\V$ battery. What is the equivalent resistance of a parallel circuit?
What is the magnitude of the total electric current flowing through the circuit (using resistors $120.0\ \Omega$, $60.0\ \Omega$, and $40.0\ \Omega$ in parallel with $12.0\V$)?
Kirchhoff's "Junction Rule" is based primarily on the law:
تفسير الإجابة
The Junction Rule is based on the Conservation of Charge (translated as 'Save the shipment' in some source texts), stating that current entering a junction must equal current leaving it.
السؤال 18
النقاط: 1
Looking at the diagram of connection A, which of the following equations correctly expresses the current flow at that point?
تفسير الإجابة
At node A, I1 enters and splits into I2 and I3. Therefore, I1 = I2 + I3.
السؤال 19
النقاط: 1
If the current entering connection A in the figure is $I_1 = 1.5\A$, and the current passing through the first branch is $I_3 = 0.6\A$, what is the value of the current passing through the second branch (I2)?
تفسير الإجابة
Using I1 = I2 + I3, we find $I_2 = I_1 - I_3 = 1.5 - 0.6 = 0.9\A$.
السؤال 20
النقاط: 1
What is the scientific definition of a "junction" in an electrical circuit?
تفسير الإجابة
A junction (or node) in a circuit is defined as a point where three or more conductors meet.
السؤال 21
النقاط: 1
Kirchhoff's loop rule (which relates to potential difference) is a direct application of the law:
تفسير الإجابة
Kirchhoff's Loop Rule is a statement of the Law of Conservation of Energy, meaning the sum of potential changes around a closed loop is zero.
السؤال 22
النقاط: 1
According to Kirchhoff's junction law (based on the conservation of charge), if a current of $1.0\A$ enters a junction and branches into two paths, and the current in the first path is $0.3\A$, what is the value of the current in the second path?
تفسير الإجابة
Total current in = Total current out. 1.0 = 0.3 + I2, so $I_2 = 0.7\A$.
السؤال 23
النقاط: 1
Which of the following statements describes the relationship between the loop (ring) and energy?
تفسير الإجابة
This reflects the conservation of energy; potential (energy per unit charge) is a state function that returns to its original value at a fixed point in space.
السؤال 24
النقاط: 1
What is the primary function of a "fuse" in an electrical circuit?
تفسير الإجابة
A fuse is a safety device that uses a low-melting-point wire to break the circuit when current is excessive.
السؤال 25
النقاط: 1

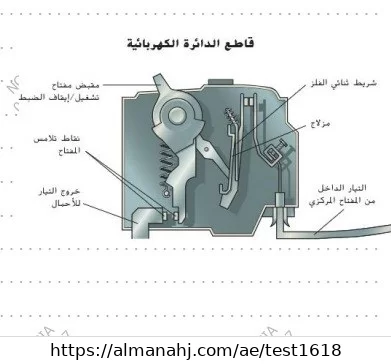

Considering the "circuit breaker" shown in the figure, what causes the bimetallic strip to bend and the circuit to open?
تفسير الإجابة
High current causes heating (Joule heating), which makes the bimetallic strip expand unevenly and bend, triggering the release mechanism.
السؤال 26
النقاط: 1
Electronic sensors detect "tiny differences" in the current caused by an additional current path (such as a leaking current to water). This device is called a:
تفسير الإجابة
GFIs are specifically designed to detect current imbalances (leakage) between hot and neutral wires to prevent shocks.
السؤال 27
النقاط: 1

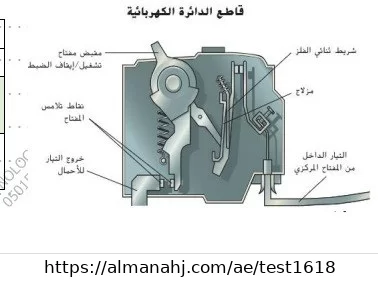

Based on the diagram, what happens when the current exceeds the allowed value in the circuit breaker?
تفسير الإجابة
In a breaker, the mechanism releases a spring-loaded switch (opened by the 'clamp' or latch mechanism) to disconnect the power.
السؤال 28
النقاط: 1
Why are safety devices (fuses and circuit breakers) necessary in home wiring?
تفسير الإجابة
Excessive current from short circuits or overloads produces heat that can cause fires; safety devices stop this current flow.
السؤال 29
النقاط: 1
What is the scientific definition of a "short circuit"?
تفسير الإجابة
A short circuit occurs when a path of very low resistance is created, causing current to surge dangerously.
السؤال 30
النقاط: 1
Why is a short circuit dangerous in home electrical wiring?
تفسير الإجابة
Large currents flowing through wires produce thermal energy at a rate proportional to the square of the current (P = I2 R).
